Range Of Products concrete pipe culvert, precast concrete pipe culvert, precast concrete in malaysia

spun pipe / precast concrete pipe culvert



Productions

We are manufactured wide range of spining concrete pipes with rebated joint and without joint (Type S) from nominal size 300mm to 1500mm.
All products manufactured under stringent control controlled enviroment with SIRIM accreditation confirming to MS 881 : Part 3:1991.

concrete pipe culvert, precast concrete pipe culvert, precast concrete in malaysia

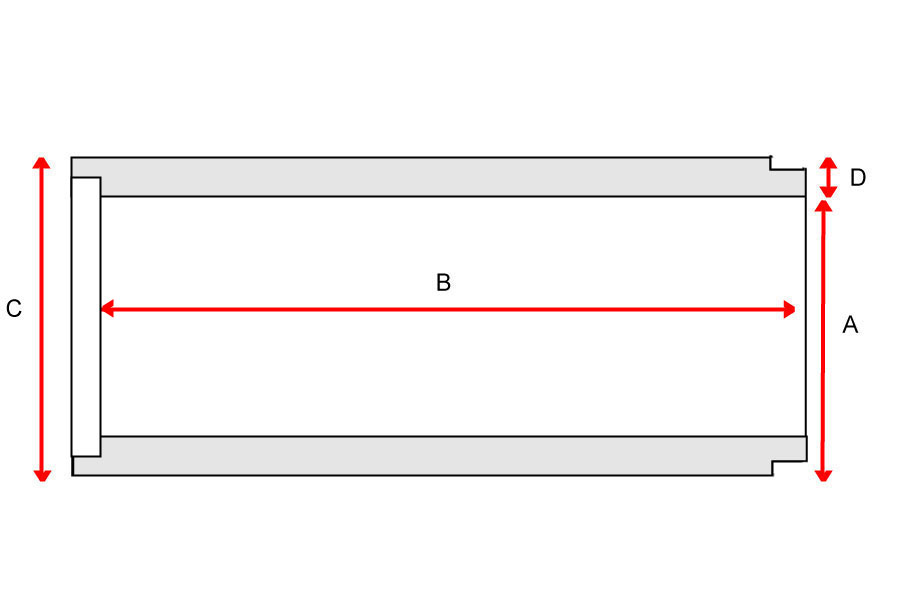

• Precast Concrete Pipes Culvert With Rebated Joint - Class X, Y, Z


concrete pipe culvert
precast concrete pipe culvert



product specification

Norminal Diameter Length
B
mm
A
mm
C
mm
D
mm		 Approx.
Weight
mt
mm in
450 18 1520 450 530 40 0.24
600 24 1520 600 700 50 0.4
750 30 1520 750 860 55 0.55
900 36 1520 900 1030 65 0.78
1200 48 1520 1200 1370 85 1.35
1500 60 1520 1500 1710 105 2.08

*Scroll to right to see more details.

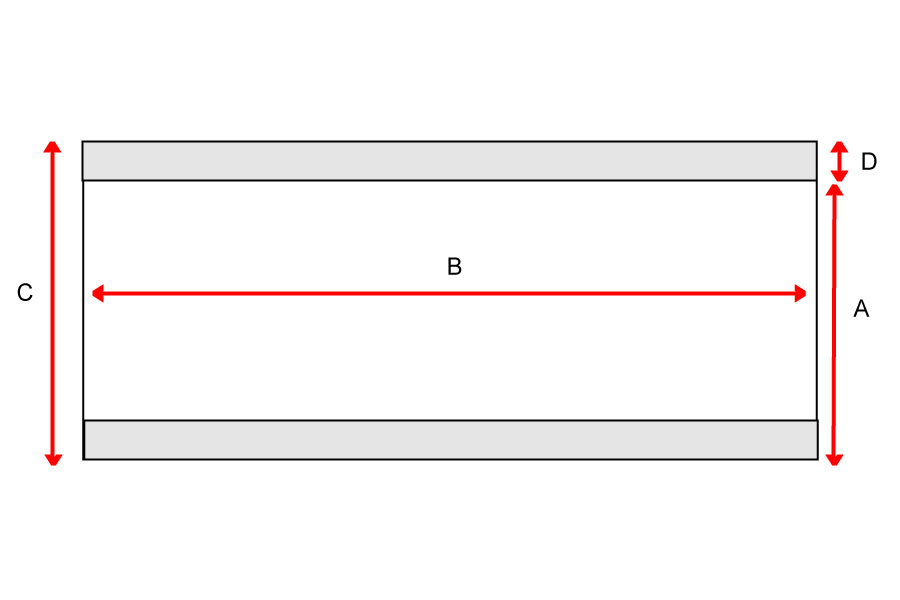

• Precast Concrete Pipes Culvert Without Joint Type S


precast concrete in malaysia
precast concrete



product specification

Norminal Diameter Length
B
mm
A
mm
C
mm
D
mm		 Approx.
Weight
mt
mm in
300 12 1520 300 370 35 0.13
375 15 1520 375 445 35 0.16
450 18 1520 450 530 40 0.23
600 24 1520 600 700 50 0.33
750 30 1520 750 860 55 0.43
900 36 1520 900 1020 60 0.57
1050 42 1520 1050 1170 60 0.77
1200 48 1520 1200 1350 75 1.00
1350 54 1520 1350 1500 75 1.20
1500 60 1520 1500 1670 85 1.35

*Scroll to right to see more details.



Material Specifications

Consituent Materials
Cement MX 522 Ordinary Portiand Cement
Steel Reinforcement BS 449 / MS 146
Aggregates BS 882 / MS 29 Mining Send / 20mm Aggregates
Admixture BS 5075 / MS 922 Super Plasticizer
Cold Drawn Wire BS 4482 / MS 144 Lateral Reinforcement Stirrup
Mild Steel Plate BS EN 10137-1 End Plate (Grade 43A)
